TECFILM · Tecnia USA material
TECFILM WHITE GLOSS BOPP 60 / TA1 / POLYESTER 30F
Gloss White BOPP 60 is a top-coated film engineered for superior performance in conventional printing processes such as flexo, offset, screen printing, and thermal transfer. TA1 emulsion acrylic adhesive is ideal for general-purpose labeling across personal care, cosmetics, household chemicals, beverages, and logistics.
View technical data sheet (PDF)

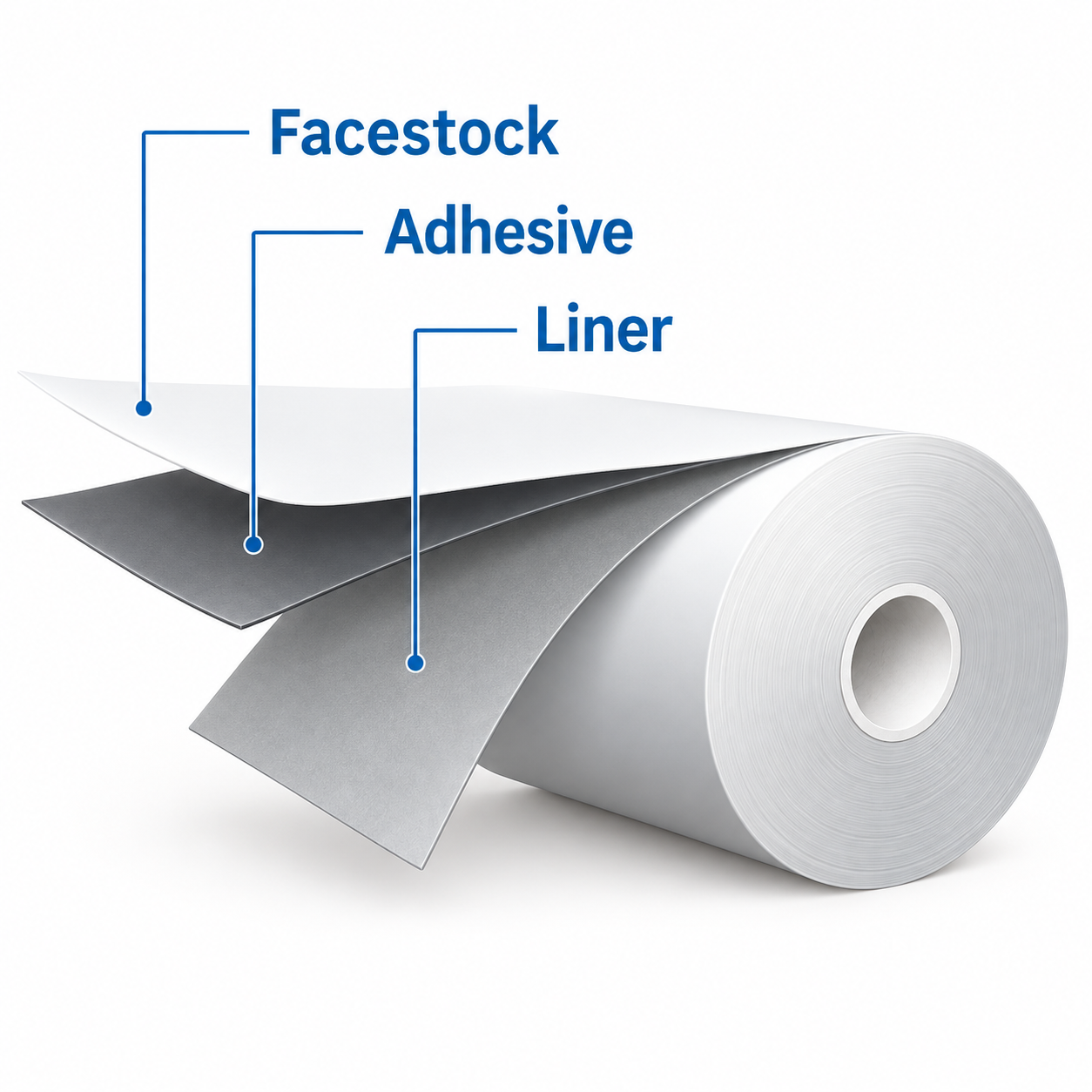

- Facestock
- WHITE GLOSS BOPP TC 60μm
- Adhesive
- TA1 Acrylic Emulsion
- Liner
- Transparent polyester 30μm
Contact for pricing
Pricing and shipping details will be confirmed before checkout.
Material performance
Technical specifications
Facestock
| Facestock Description | Facestock Caliper (μm) ISO 534 | Facestock Basis Weight (g/m²) ISO 536 | Gloss Level (@60°) | ISO Brightness (%) ISO 2470 |
|---|---|---|---|---|
| Top-Coated Gloss White BOPP | 60 (± 5%) | 49.2 (± 5%) | ≥ 90 | Not specified |
Adhesive
| Adhesive Type | Adhesive Caliper (μm) | Initial Tack (N/in) FTM 9 (Glass) | 90° Peel Adhesion (N/in) FTM 2 (Steel) | Shear Resistance 9.8N/in² (hours) FTM 3 | Min Application Temperature (°C) | Service Temperature Range (°C) |
|---|---|---|---|---|---|---|
| Emulsion Acrylic | 19 (± 1) | ≥ 9 | ≥ 6 | ≥ 15 | 5 | -20 to 80 |
Liner
| Liner Description | Liner Caliper (μm) ISO 534 | Liner Basis Weight (g/m²) ISO 536 | Release Force (gf) |
|---|---|---|---|
| Clear Polyester (PET) Film | 30 (± 4%) | Not specified | 15 to 35 |
Storage information
Store at 23 (±2) °C and 50 (±5) % Relative Humidity.
Printing processes
Flexo / Letter Press (Yes), Offset (Yes), Screen Printing (Yes), Thermal Transfer (Testing Required), Direct Thermal (No), UV Inkjet (Testing Required), Laser / Toner (Testing Required), HP Indigo (Topcoat / Primer Required).
Material qualification and warranty
All information contained in this technical data sheet is based on standard industry measurements, tests, and evaluations, but does not constitute a warranty. All Tecnia materials are sold under the condition that the purchaser independently tests and qualifies the material for their specific converting and end-use applications. Tecnia materials are warranted against manufacturing defects for 12 months from the commercial invoice date, with liability strictly limited to the replacement value of the confirmed defective material quantity. TECNIA ASIA CO., LIMITED. All rights reserved. SPECIFICATION VERSION: JULY 2024.
